XCOM QUANTA MACHINE PART
The goal of Quanta, a dialysis machine company, is to unify disconnected data, processes, and teams to accelerate patient access to life-saving therapeutics from early research to manufacturing
For SOLIDWORKS, the company sought to create a future vision in the industry of medical devices, and where the product brand can be by 2035.
I was tasked with using the SOLIDWORKS cloud solution xShape, to create a part entirely in subdivision to showcase its uses for design and CAD modeling.
Model
Reference

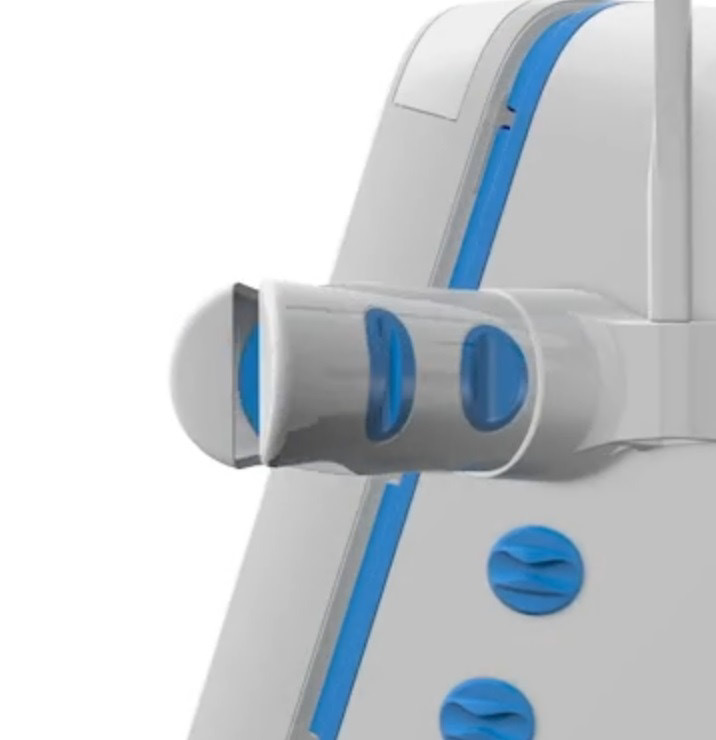

Pictured is the modeled version of the small side arm. The design of the part had an organic shape and required the use of subdivision techniques for its creation.
I was also tasked with making the model more realistic for rendering, including the creation of the screen as shown below.

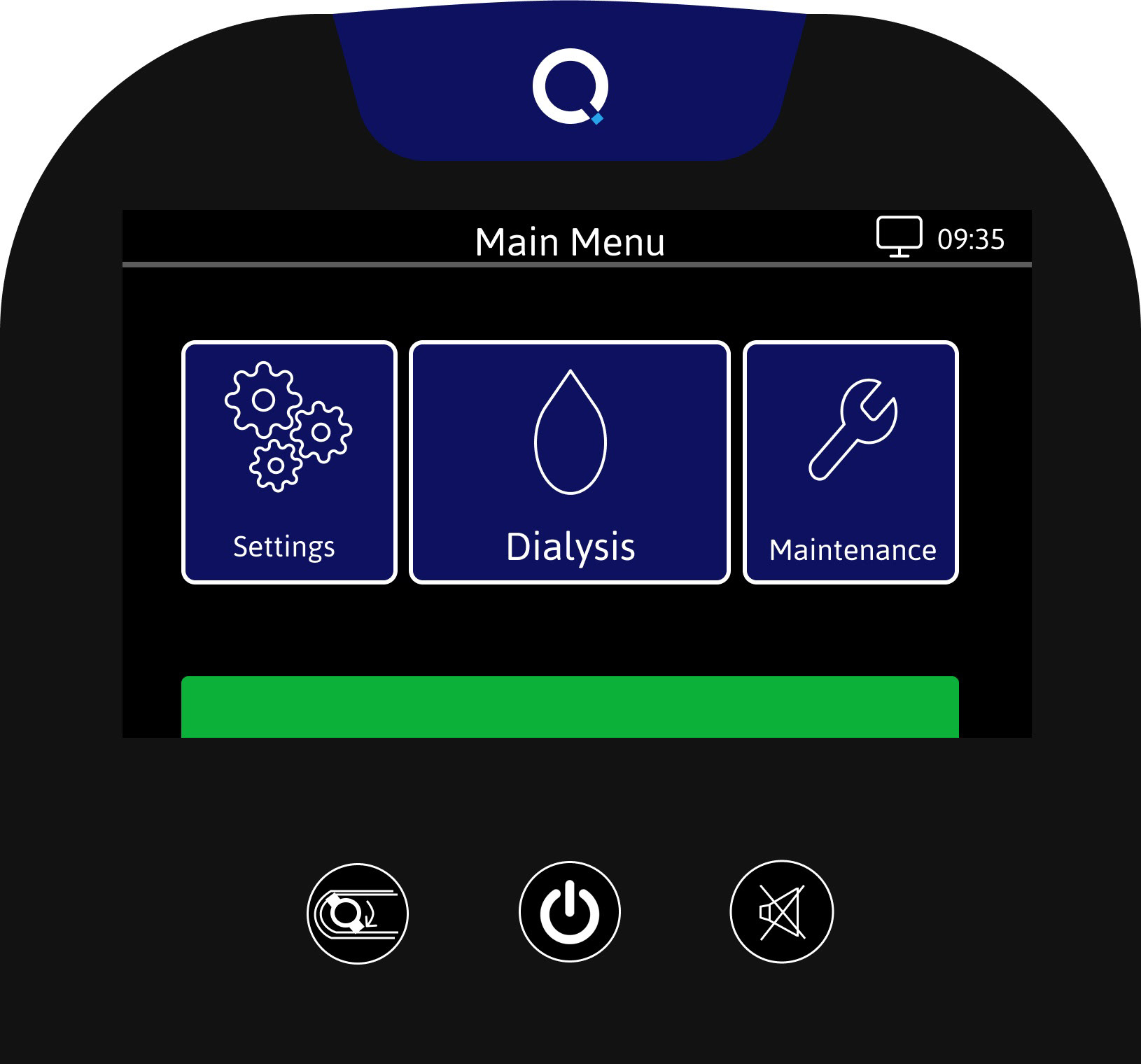

Screen created with Figma software
Full model for commercial presentation.
